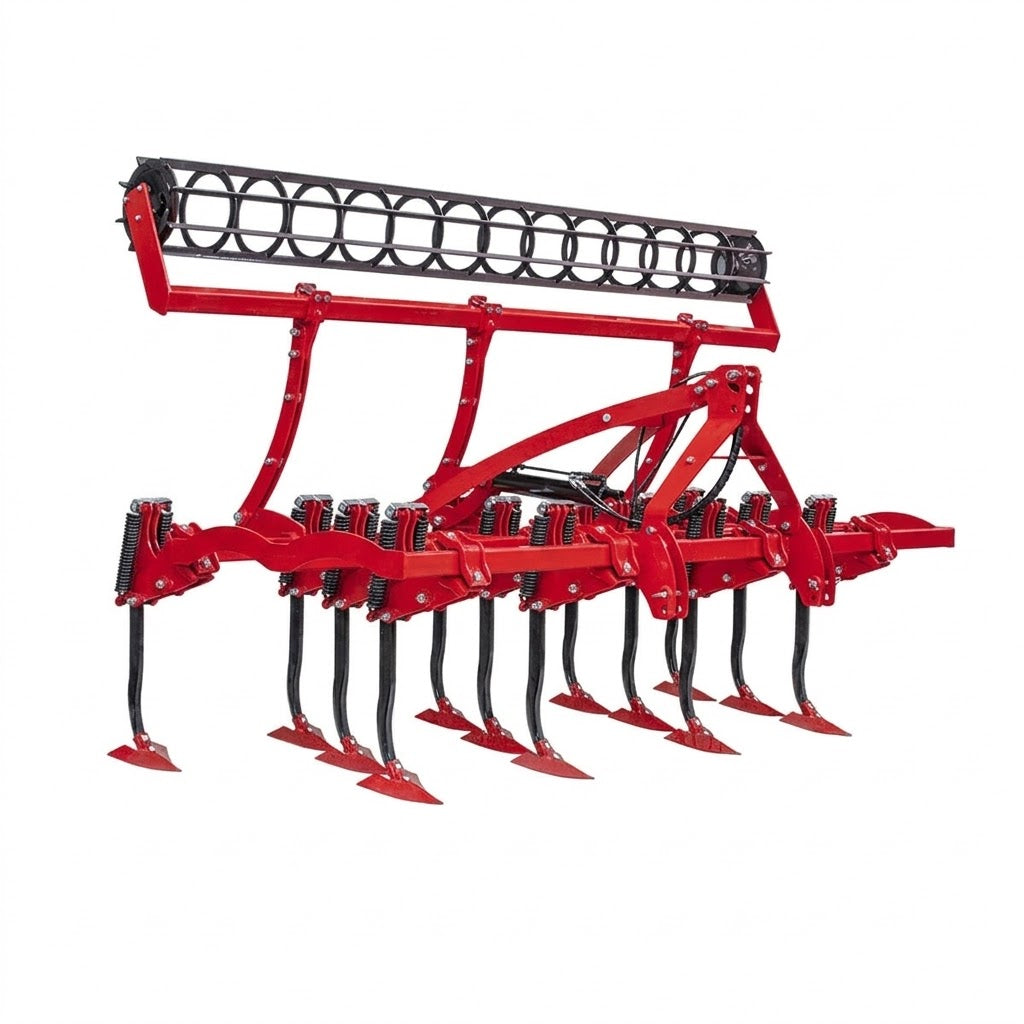

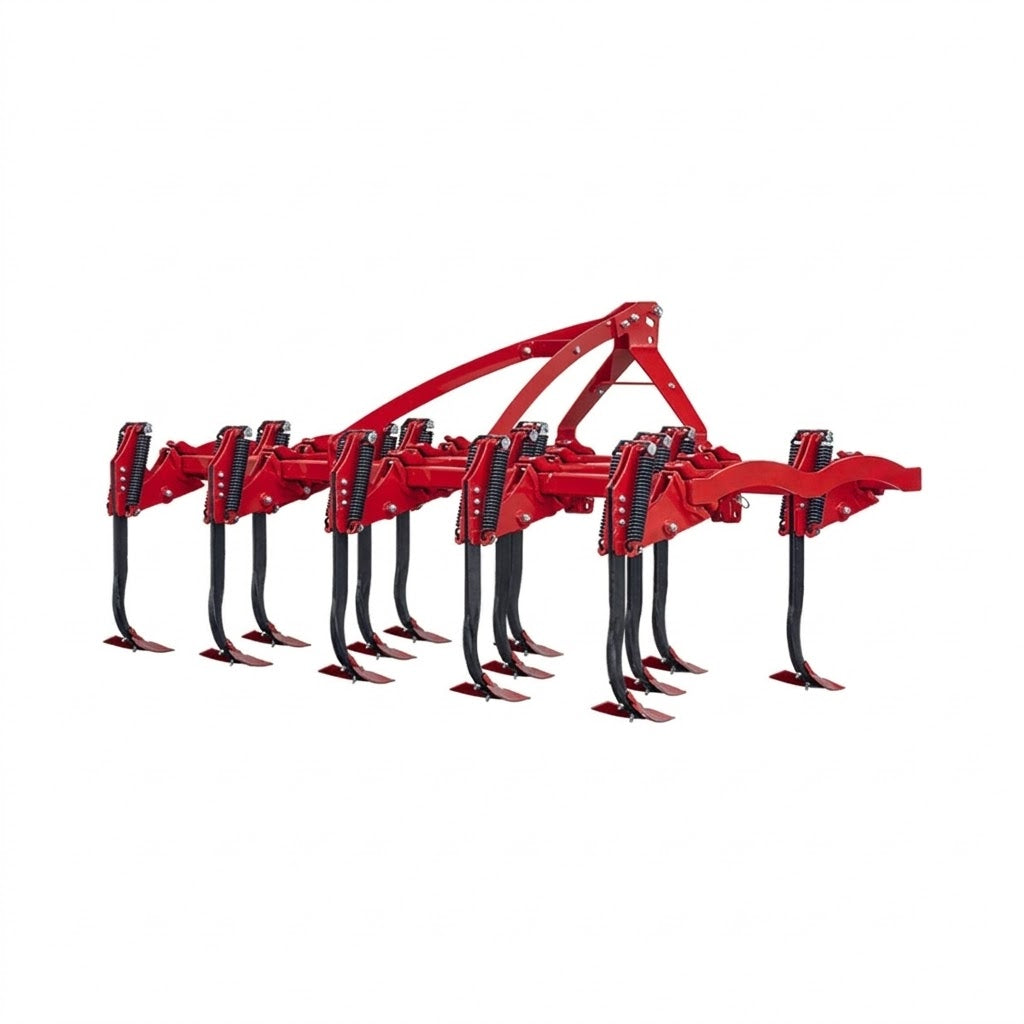

3-Row Vertical Spring Cultivator (70mm x 30mm)
The rigid spring cultivator is manufactured to ensure maximum depth and effective soil fragmentation in pre-sowing soil preparation. Thanks to its high-strength leg structure measuring 70mm x 30mm, the rigid spring cultivator maintains its structural integrity and delivers uninterrupted performance even in the hardest and heaviest soils. With its special 3-row arrangement, it stands out by providing smooth operation in stubble fields without being affected by plant residues or experiencing clogging issues.
Developed for professional agricultural operations, the rigid spring cultivator extends component life by protecting itself against obstacles such as stones and roots beneath the soil with its special spring mechanism. It increases the soil’s water retention capacity while aerating it, helping plant roots reach deeper layers. Its ergonomic chassis design ensures efficient use of tractor traction power, contributing to fuel savings.
If you want to maximize productivity in your field and create a perfect seedbed in a short time, you can add value to your operation by choosing this rigid spring cultivator model. With its low maintenance cost and wear-resistant tips, it will be your reliable assistant for many years in the toughest harvest preparations. Manufactured according to modern engineering standards, this rigid spring cultivator is the first choice for modern agricultural businesses seeking strength and durability.
| Product Code | Number of Tines | Weight (kg) | Single Folding Weight (kg) | Double Folding Weight (kg) | Tractor Power (hp) | Under Frame Clearance (cm) | Front-Rear Row Spacing (cm) | Frame Height (cm) | Theoretical Working Width (cm) | Working Depth (cm) |
|---|---|---|---|---|---|---|---|---|---|---|
| - | 10 | 624 | 863 | 1024 | 50–55 | 60 | 110 | 120 | 240 | 25 |
| - | 11 | 686 | 942 | 1098 | 55–65 | 60 | 110 | 120 | 290 | 25 |
| - | 13 | 796 | 1086 | 1238 | 65–75 | 60 | 110 | 120 | 340 | 25 |
| - | 15 | 918 | 1254 | 1393 | 75–90 | 60 | 110 | 120 | 390 | 25 |
| - | 16 | 1040 | 1390 | 1534 | 90–110 | 60 | 110 | 120 | 400 | 25 |
| - | 17 | 1105 | 1465 | 1611 | 110–130 | 60 | 110 | 120 | 440 | 25 |
