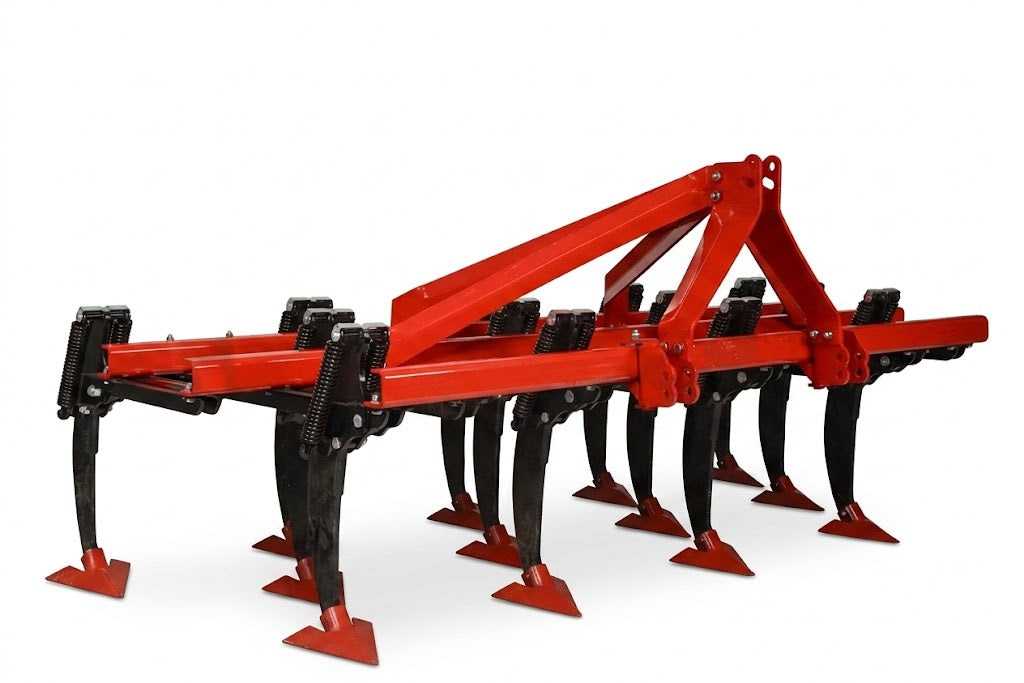

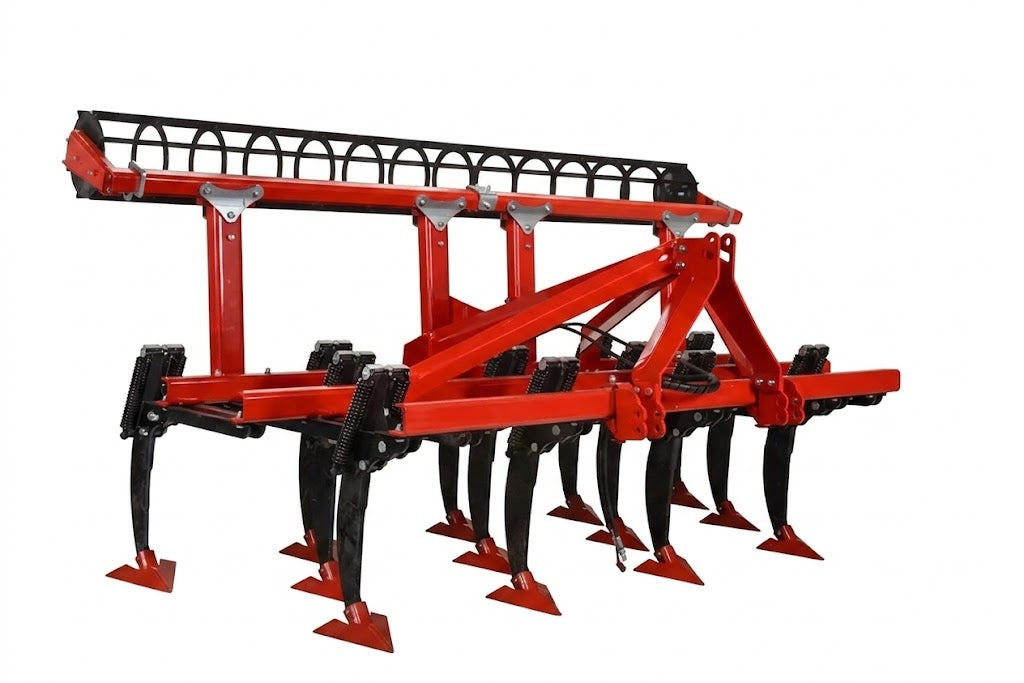

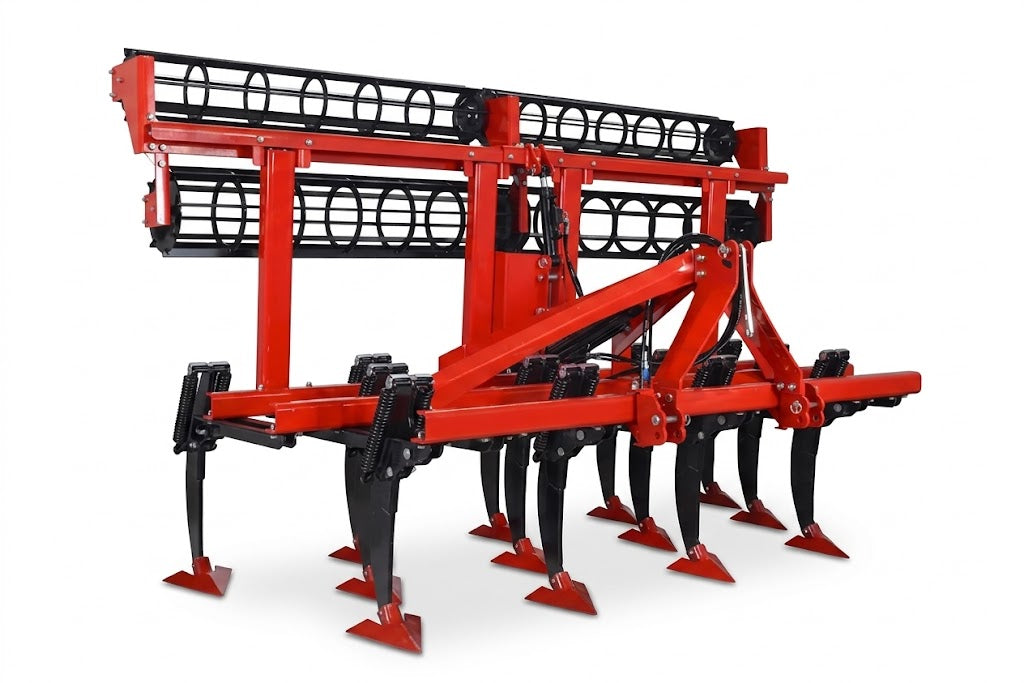

3-Row Vertical Spring Cultivator
Spring Cultivator
The spring cultivator is designed to provide maximum working depth and effective soil fragmentation during pre-sowing field preparation. Its high-strength tine structure maintains durability even in the hardest soil conditions, ensuring consistent performance in demanding agricultural work.
With a special 3-row arrangement, it works smoothly in stubble fields without clogging or being affected by crop residues. Its spring mechanism helps protect the implement from stones and roots, extending component life and improving reliability in the field.
The cultivator also helps aerate the soil, improve moisture retention, and support deeper root development. Its ergonomic chassis design makes tractor power use more efficient, helping reduce fuel consumption.
If you want to improve productivity and prepare a high-quality seedbed in less time, this model is a dependable choice for long-term field preparation.
| Product Code | Number of Legs | Bare Weight (kg) | Single Rotary Weight (kg) | Double Rotary Weight (kg) | Tractor Power (hp) | Ground Clearance (cm) | Front-Rear Row Spacing (cm) | Theoretical Working Width (cm) |
|---|---|---|---|---|---|---|---|---|
| - | 10 | 670 | 926 | 1082 | 50–55 | 72 | 110 | 190 |
| - | 11 | 736 | 992 | 1148 | 60–65 | 72 | 110 | 290 |
| - | 13 | 870 | 1160 | 1312 | 75–90 | 72 | 110 | 340 |
| - | 15 | 1000 | 1336 | 1475 | 90–110 | 72 | 110 | 390 |
| - | 16 | 1090 | 1450 | 1596 | 110–120 | 72 | 110 | 400 |
| - | 17 | 1160 | 1520 | 1666 | 120–130 | 72 | 110 | 440 |
