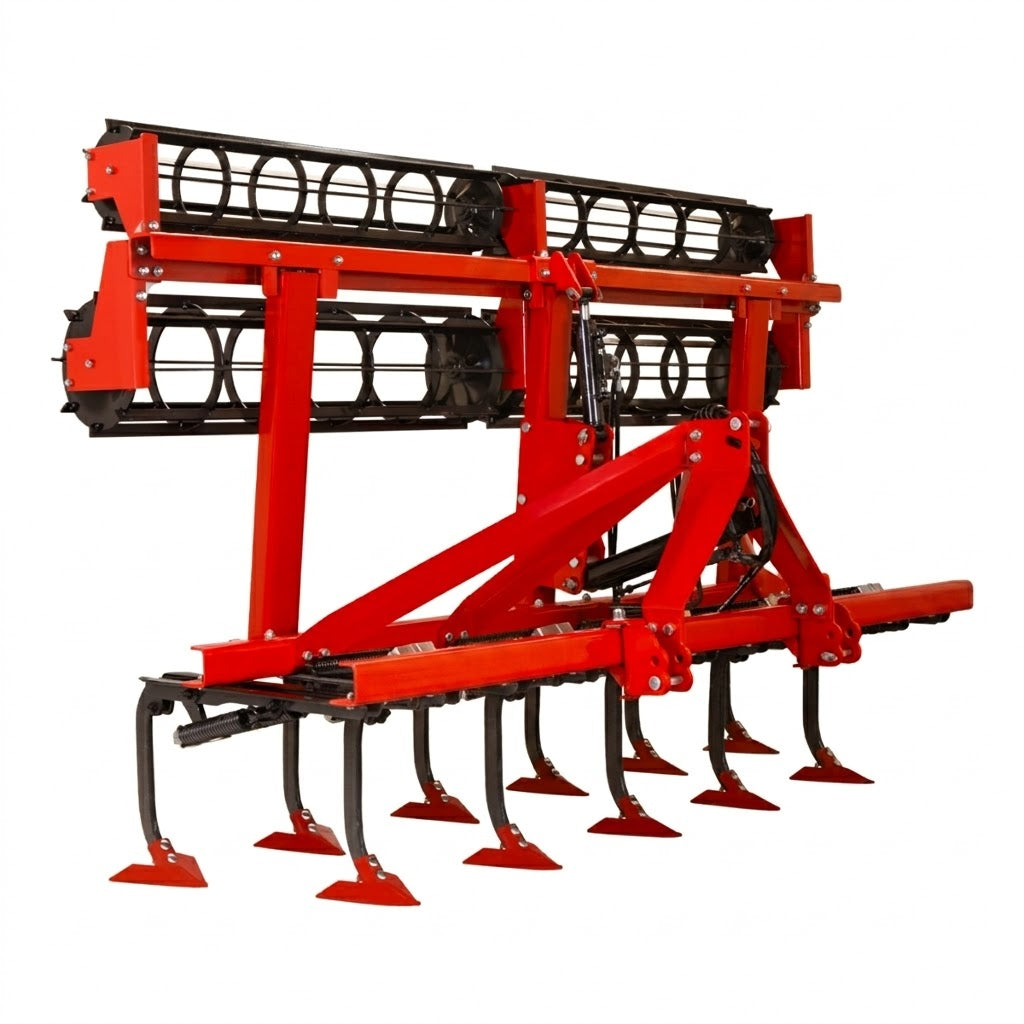

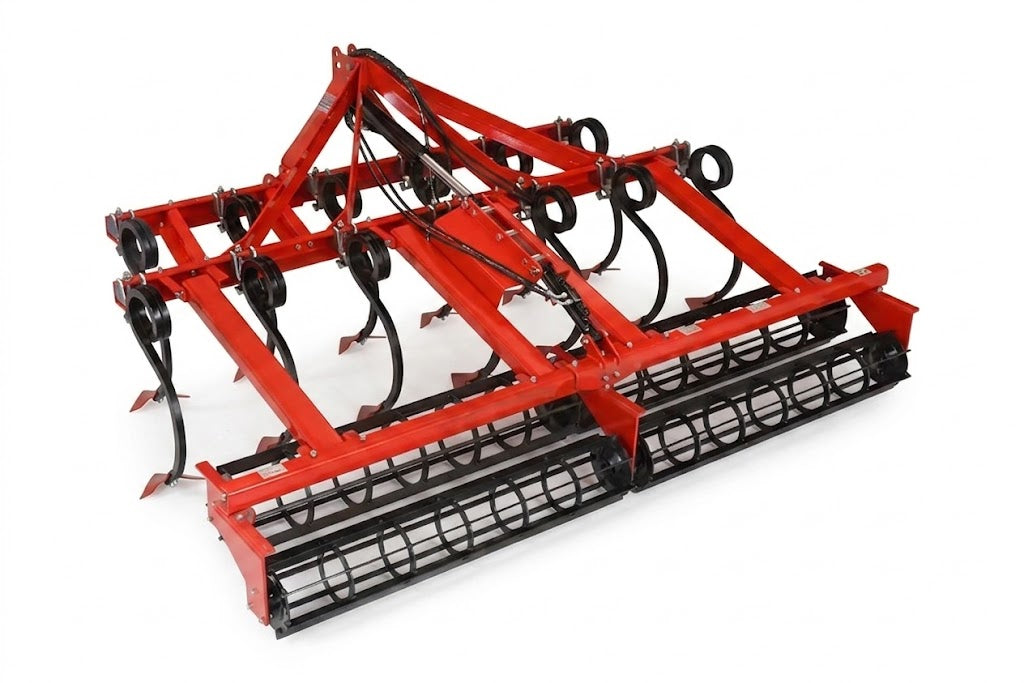

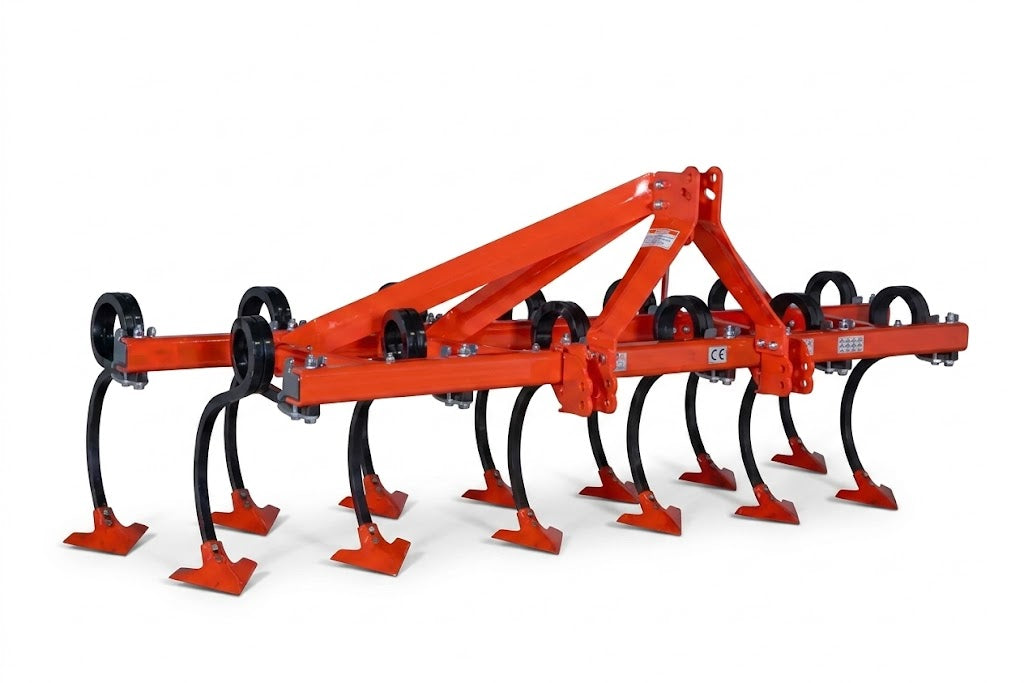

Spring Steel Tine Cultivator
The spring steel tine cultivator is designed to aerate the soil without overturning it and complete pre-sowing soil preparation in modern agricultural fields. Its high-strength chassis and spring-loaded tine structure provide smooth, vibration-free operation, especially on hard ground.
The flexible mechanism helps protect the machine against obstacles and extends equipment lifespan. It also improves field efficiency while helping preserve soil moisture and control weeds effectively.
This cultivator reduces the draft force required from the tractor, which helps save fuel and lowers operating costs. Built for long-term use, it maintains reliable performance even in demanding terrain and is a strong choice for sustainable agriculture.
| Product Code | Number of Tines | Net Weight (kg) | Single Roller Weight (kg) | Double Roller Weight (kg) | Tractor Power (hp) | Ground Clearance (cm) | Row Spacing (cm) | Theoretical Working Width (cm) |
|---|---|---|---|---|---|---|---|---|
| - | 7 | 320 | 516 | 671 | 55–65 | 60 | 61 | 240 |
| - | 9 | 402 | 622 | 784 | 55–65 | 60 | 61 | 240 |
| - | 11 | 464 | 720 | 876 | 65–75 | 60 | 61 | 290 |
| - | 13 | 544 | 834 | 986 | 75–90 | 60 | 61 | 340 |
| - | 15 | 656 | 992 | 1131 | 90–110 | 60 | 61 | 390 |
| - | 17 | 740 | 1100 | 1246 | 110–130 | 60 | 61 | 440 |
