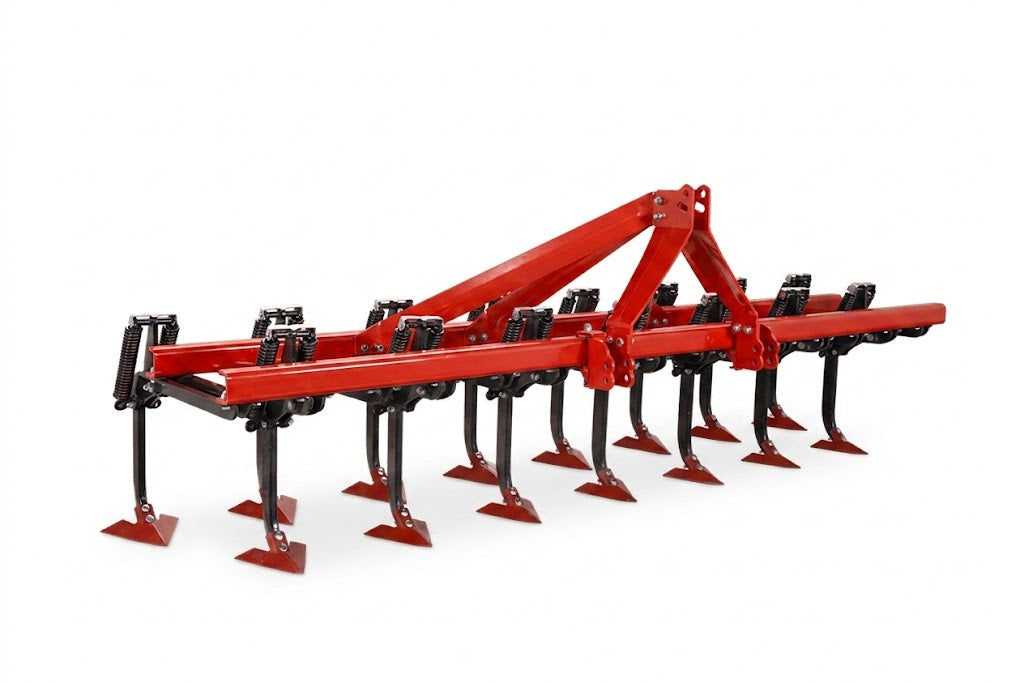

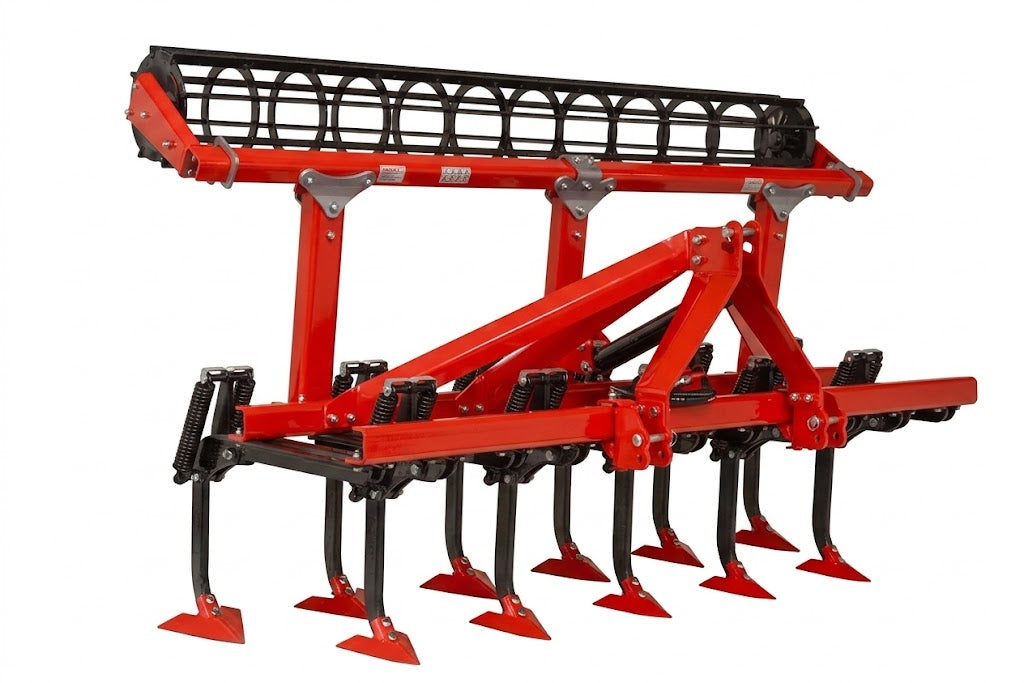

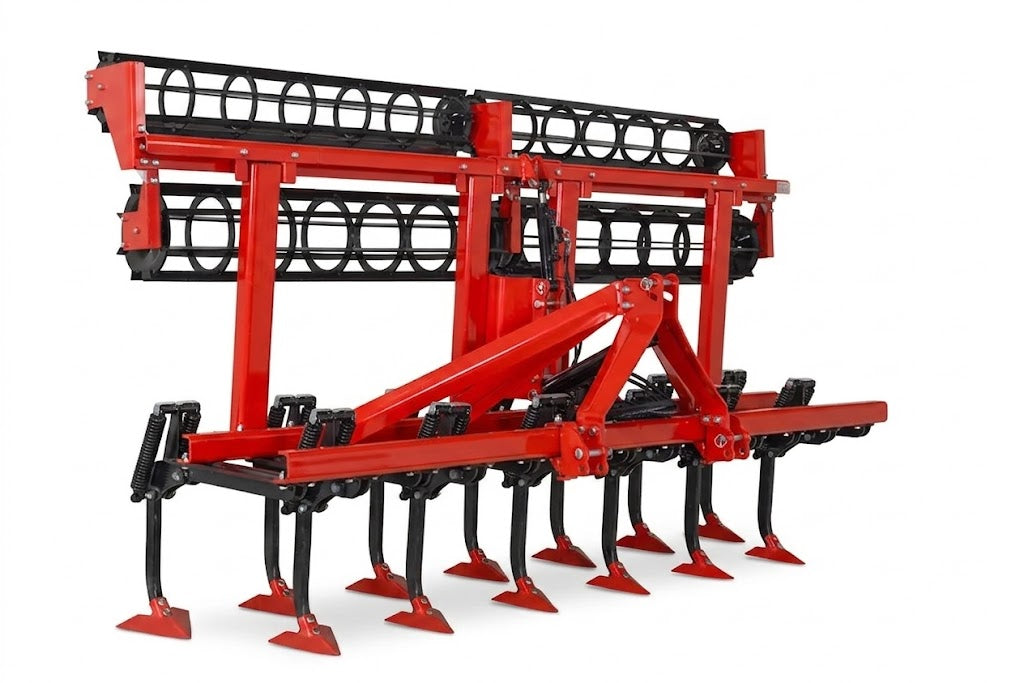

Vertical Spring Cultivator (70mm x 30mm)
Spring Tine Cultivator
The spring tine cultivator is designed to provide maximum depth and effective soil fragmentation during pre-sowing field preparation. Its high-strength 70 mm x 30 mm tine structure maintains durability even in the hardest and heaviest soils, ensuring continuous performance under demanding conditions.
Its special 3-row arrangement allows smooth operation in stubble fields without clogging or being affected by plant residues. The spring mechanism helps protect the machine from underground obstacles such as stones and roots, extending the life of its components.
This model also improves soil aeration, increases water retention capacity, and helps plant roots reach deeper layers. Its ergonomic chassis design makes better use of tractor pulling power, helping reduce fuel consumption.
If you want to improve field productivity and prepare an ideal seedbed in less time, this model is a dependable choice. With low maintenance needs and wear-resistant tips, it is built to remain a reliable partner for many years.
| Product Code | Number of Tines | Net Weight (kg) | Single Roller Weight (kg) | Double Roller Weight (kg) | Tractor Power (hp) | Ground Clearance (cm) | Row Spacing (cm) | Theoretical Working Width (cm) |
|---|---|---|---|---|---|---|---|---|
| - | 7 | 430 | 626 | 781 | 50–55 | 60 | 61 | 190 |
| - | 9 | 530 | 750 | 912 | 55–65 | 60 | 61 | 240 |
| - | 11 | 632 | 888 | 1044 | 65–75 | 60 | 61 | 290 |
| - | 13 | 732 | 1022 | 1174 | 75–90 | 60 | 61 | 340 |
| - | 15 | 846 | 1182 | 1321 | 90–110 | 60 | 61 | 390 |
| - | 17 | 960 | 1320 | 1466 | 110–130 | 60 | 61 | 440 |
